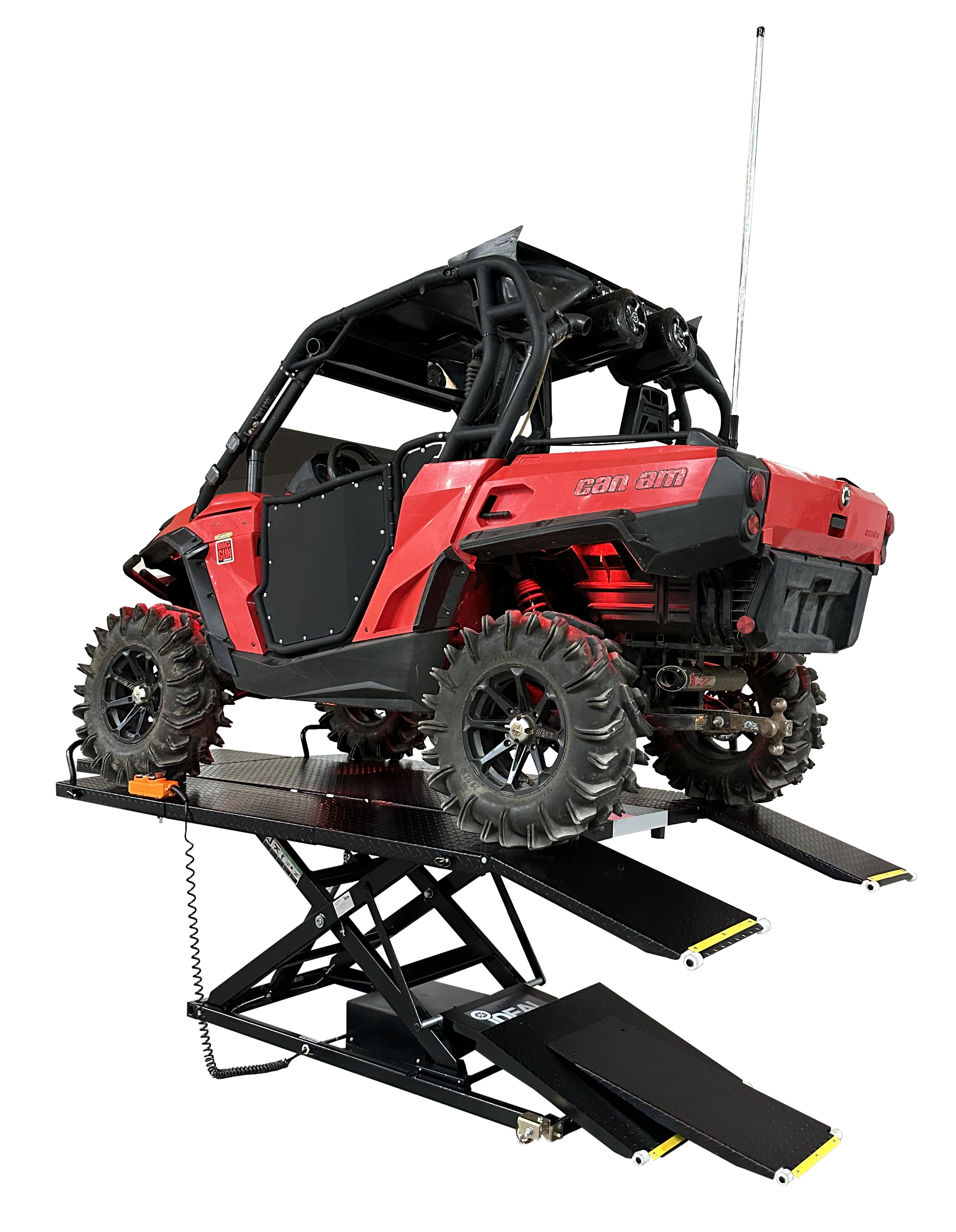

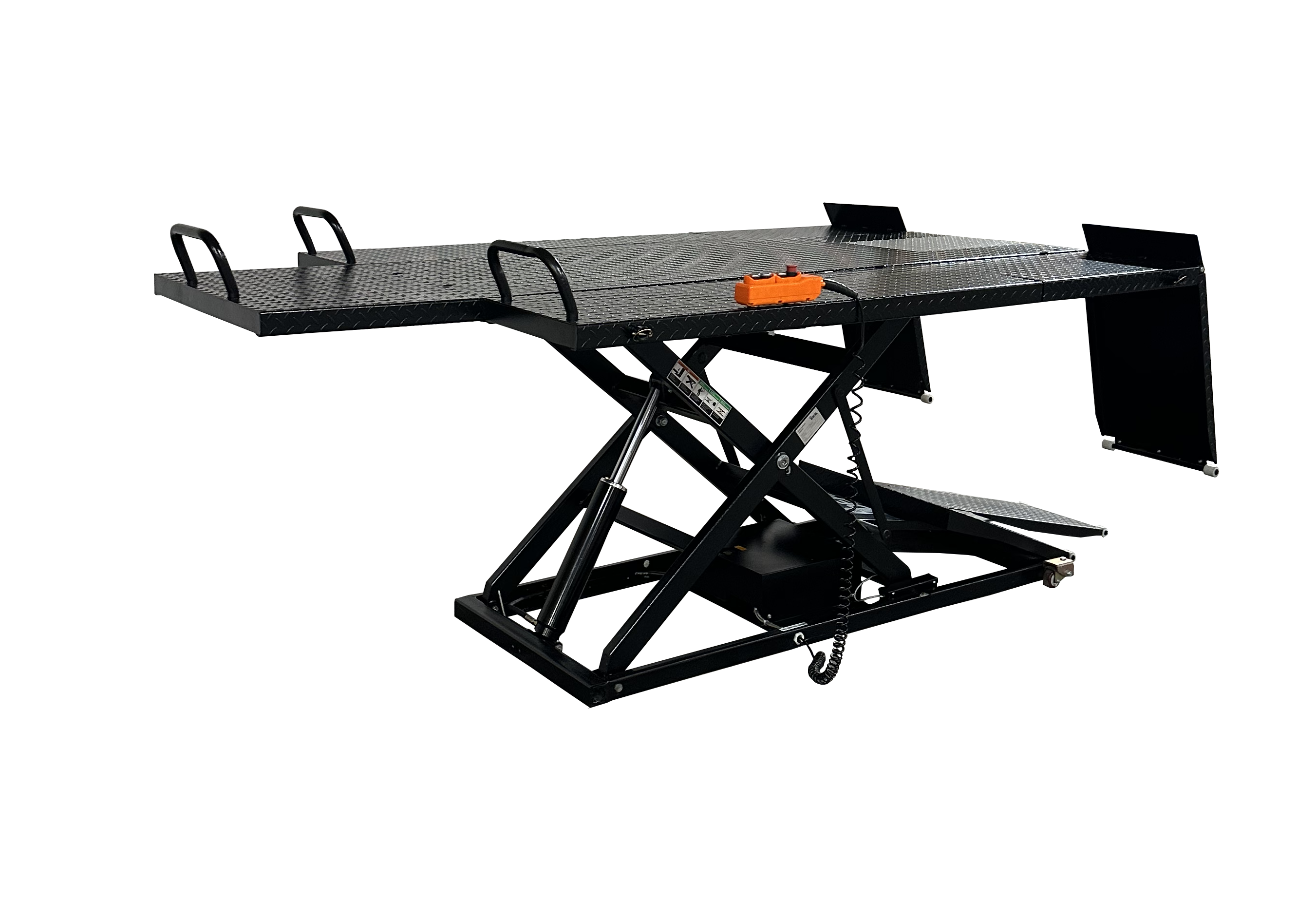

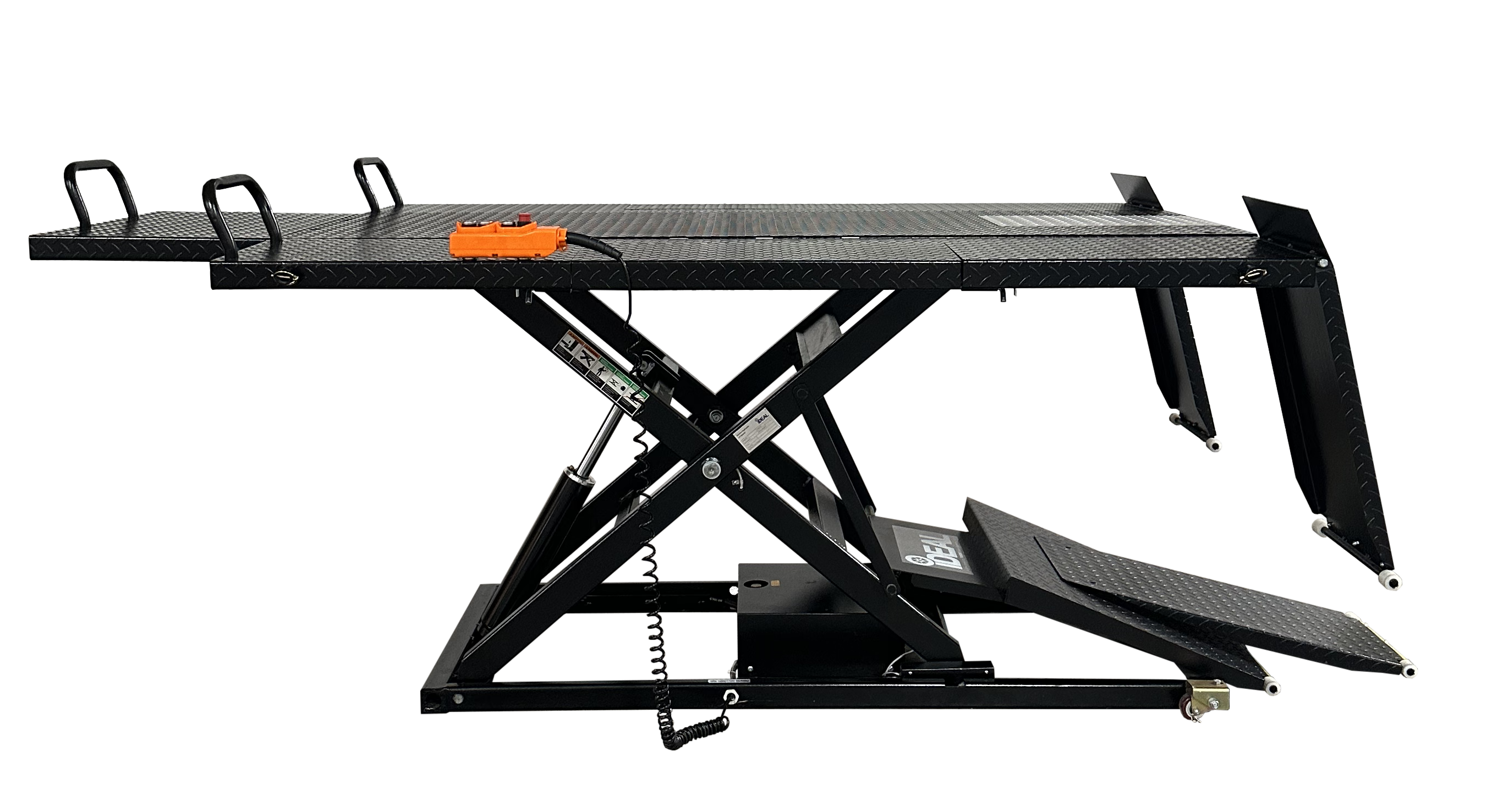

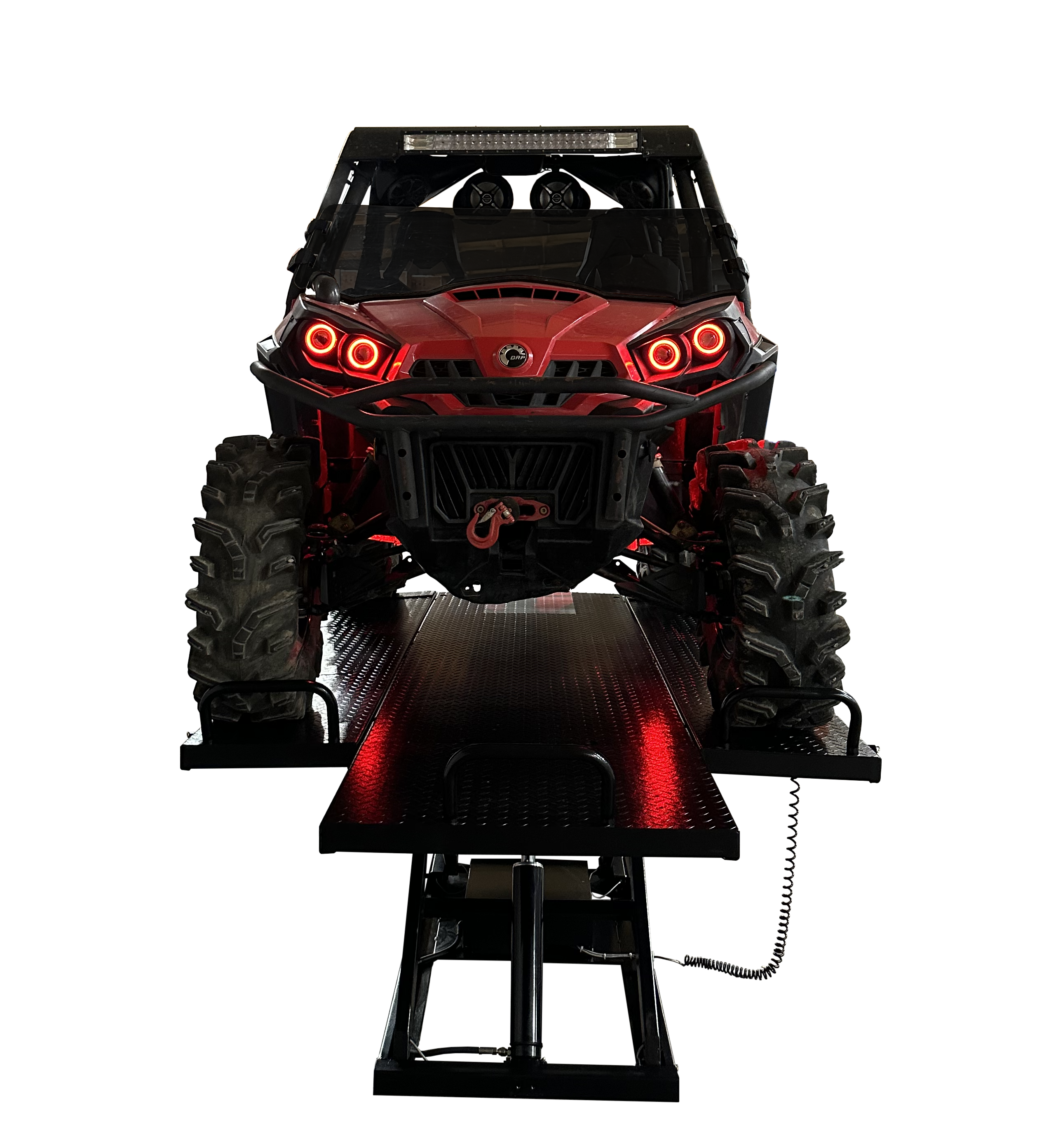

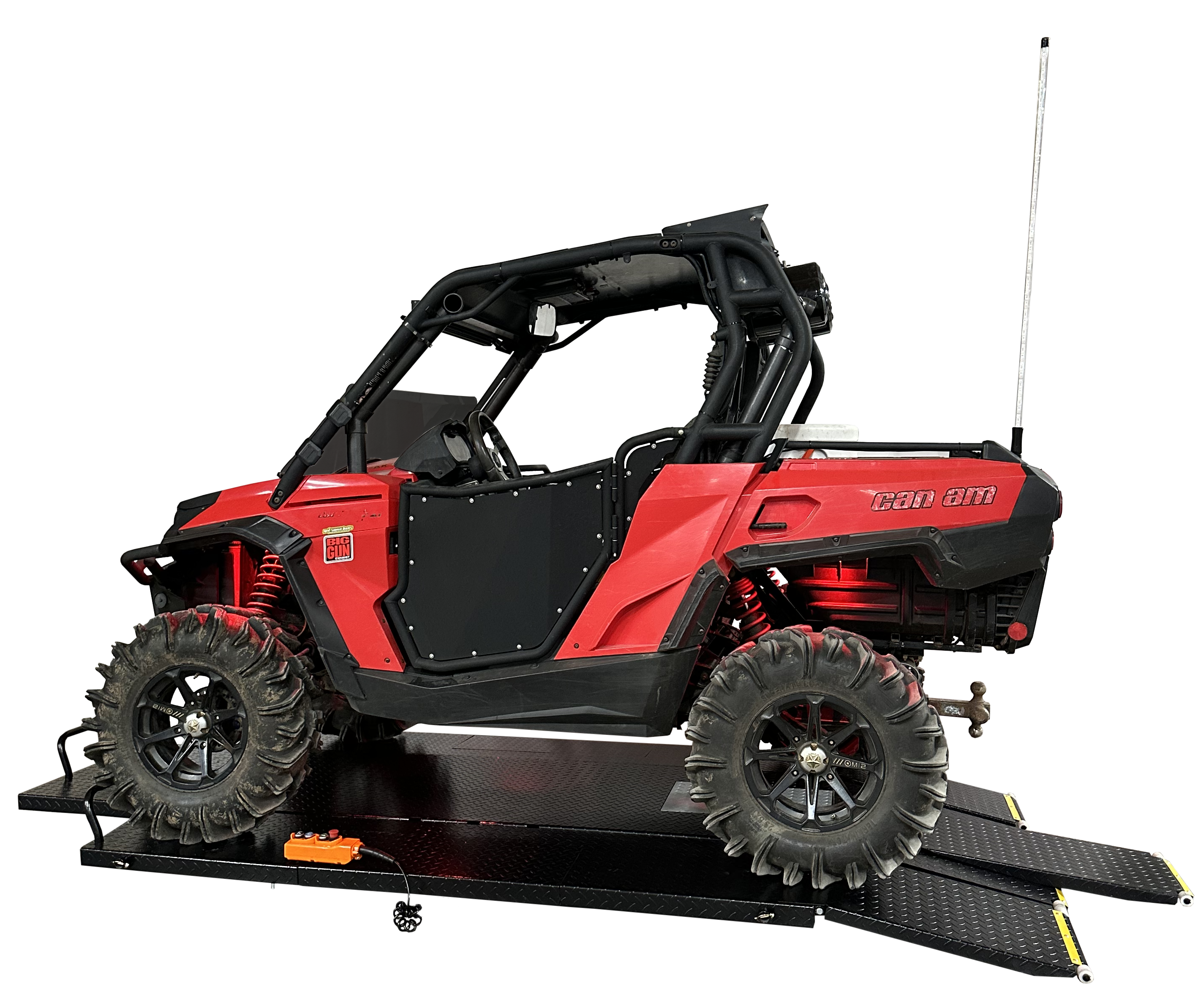

Tuxedo Electric / Hydraulic UTV Lift Bench U-2200IEH-XR-BLK
$5,500.00
In Stock
Pre-Order
Sold out
CODE: U-2200IEH-XR-BLK
Categories: Lifts
100% ORIGINAL AND QUALITY
1 YEAR WARRENTY
- Description
- Shipping and Refund
- Specifications

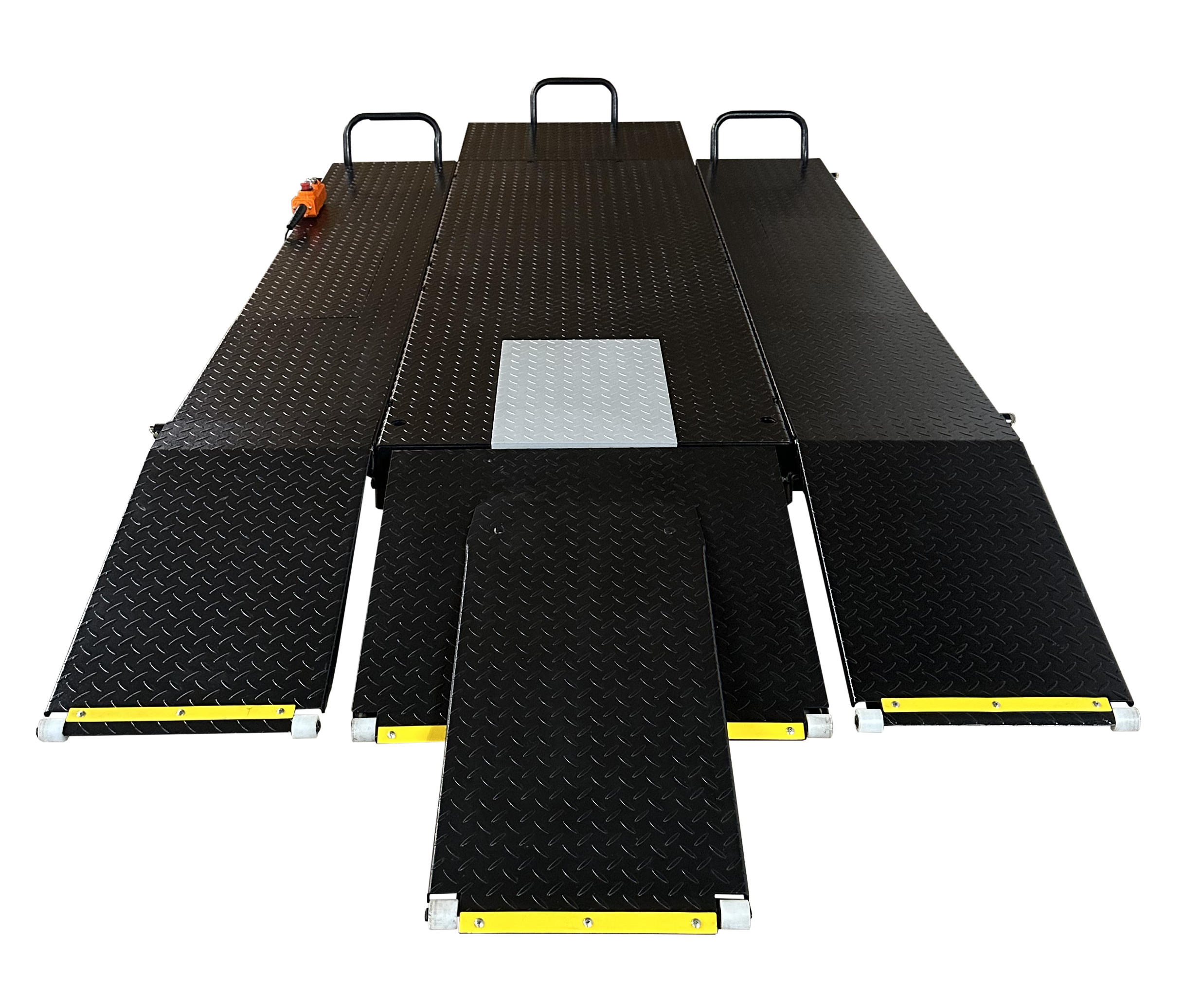

- EXCLUSIVE – ‘FULL WIDTH’ RETRACTABLE RAMP SYSTEM
- EXCLUSIVE – SIDE EXTENSIONS W/ CENTER DROP PANELS
- 2,200 LBS. CAPACITY
- 47″ RISE HEIGHT
- 65″ X 88.6″ PLATFORM SIZE

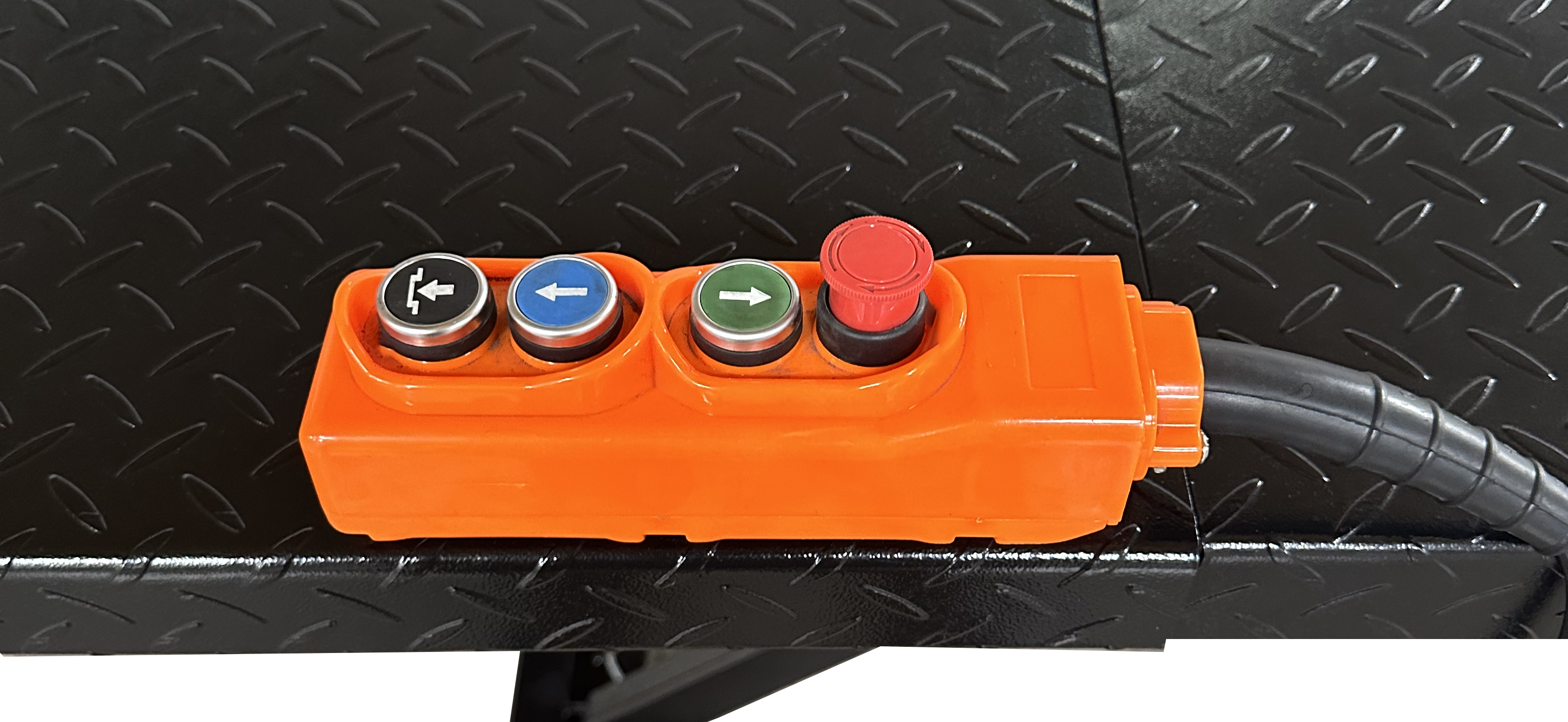

- HAND HELD REMOTE CONTROL PENDANT
- 110V INTEGRATED ELECTRIC / HYDRAULIC POWER UNIT
- MAGNETIC LOCK RELEASE
- THREE LOCKING POSITIONS
- REAR DROP DOWN SERVICE PANEL
- STABILIZER BAR
- WHEEL STOPS
- TIE-DOWN ANCHOR EYE BOLTS
- PLATFORM DESIGNED TO MOUNT OPTIONAL M-VISE OR M-CHOCK
Specifications
| Lift Model | U-2200IEH-XR |
| Capacity | 2,200 lbs |
| Min. Height | 7″ |
| Max Lifting Height | 47-1/4″ |
| Overall Length w/ Ramp | 116-1/2″ |
| Overall Width | 65″ |
| Platform Size (L x W) | 88-5/8″ x 65″ |
| Lifting Time | 30S |
| Lowering Time | 30S |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 970 lbs |
